How to Install Zabbix on a Raspberry Pi

… or actually, a few Raspberry Pis! I’d like to install the Zabbix monitoring suite and have decided to split up the workload across 3 Raspberry Pi 3B’s. Just like in actual production, we’ll have a Zabbix front-end, a Zabbix Proxy polling server, and a Raspberry Pi database server.

The Story So Far…

IF you’re a regular reader of this site, you know I have Saltstack installed on all of my Raspberry Pis. So, I did a fresh install of Raspberry OS on each of my RPIs. I ran an “apt update” and an “apt upgrade”. I moved / to a SanDisk USB drive. Zabbix is a VERY active process and really should be run from an external drive and NOT from SD card! I just leave /boot on the SD and use that. Reading the boot files from the SD card is fine. Lots of multiple little writes to the SD card is very detrimental to the longevity of the SD card.

The Zabbix Platform

I’m going to split up the workload. I think I can get away with using Pi 3’s instead of Pi 4’s because the computation for this is not too high. It’s the network traffic and the I/O operations that I want to split up, so I’ll go with the 3 Zabbix elements on 3 seperate Pis.

Zabbix Front-End

Let’s install the main Zabbix server first, then we’ll go through setting up the external database server and then finally the proxy server. I generally log in as root and do installations, because I don’t always remember to type “sudo” to preface all the commands and I get confused about why everything doesn’t work. If you are comfortable operating like this, just remember to drop out root’s account when you’re ready to start testing things and playing around! So, the next couple of command install the Zabbix repo, populate it and then pull down the requested packages. I’m doing the 5.0 LTS version. There’s currently a 5.2 available, but I’m not that brave!

root@zabbix:~# wget https://repo.zabbix.com/zabbix/5.0/raspbian/pool/main/z/zabbix-release/zabbix-release_5.0-1+$(lsb_release -sc)_all.deb
root@zabbix:~# dpkg -i zabbix-release_5.0-1+$(lsb_release -sc)_all.deb
root@zabbix:~# apt update
root@zabbix:~# apt -y install zabbix-server-mysql zabbix-frontend-php zabbix-apache-conf zabbix-agent
Reading package lists… 99%

Put that on to simmer and we’ll move on to the database server!

Zabbix Database Server

Of course, you can install the database server on the same Raspberry, but I like to try to model a production environment with my fleet of Raspberries. We’ll do a stock install of MariaDB for Zabbix, with a couple of tweaks that we’ll revisit later.

Using apt is the easiest way to get the database server installation underway. It has a bunch of dependencies, so let apt worry about all of that. As you can see, apt has our back on this one:

root@zab-db:~# apt -y install mariadb-server
Reading package lists… Done
Building dependency tree
Reading state information… Done
The following additional packages will be installed:
galera-3 gawk libaio1 libcgi-fast-perl libcgi-pm-perl libconfig-inifiles-perl libdbd-mysql-perl libdbi-perl libencode-locale-perl libfcgi-perl libhtml-parser-perl
libhtml-tagset-perl libhtml-template-perl libhttp-date-perl libhttp-message-perl libio-html-perl liblwp-mediatypes-perl libreadline5 libsigsegv2 libsnappy1v5 libterm-readkey-perl
libtimedate-perl liburi-perl lsof mariadb-client-10.3 mariadb-client-core-10.3 mariadb-server-10.3 mariadb-server-core-10.3 socat
Suggested packages:
gawk-doc libclone-perl libmldbm-perl libnet-daemon-perl libsql-statement-perl libdata-dump-perl libipc-sharedcache-perl libwww-perl mailx mariadb-test tinyca
The following NEW packages will be installed:
galera-3 gawk libaio1 libcgi-fast-perl libcgi-pm-perl libconfig-inifiles-perl libdbd-mysql-perl libdbi-perl libencode-locale-perl libfcgi-perl libhtml-parser-perl
libhtml-tagset-perl libhtml-template-perl libhttp-date-perl libhttp-message-perl libio-html-perl liblwp-mediatypes-perl libreadline5 libsigsegv2 libsnappy1v5 libterm-readkey-perl
libtimedate-perl liburi-perl lsof mariadb-client-10.3 mariadb-client-core-10.3 mariadb-server mariadb-server-10.3 mariadb-server-core-10.3 socat
0 upgraded, 30 newly installed, 0 to remove and 0 not upgraded.
Need to get 18.4 MB of archives.
After this operation, 150 MB of additional disk space will be used.

Answer “y” and let it do its thing. Once it completes, use the secure install routine to set the password and set the scene for use.

Zabbix Database Security

Here are my answers (edited for brevity):

root@zab-db:~# mysql_secure_installation
Enter current password for root (enter for none):
Set root password? [Y/n] Y
New password: ZabPass
Re-enter new password: ZabPass
Password updated successfully!
Remove anonymous users? [Y/n] Y
Disallow root login remotely? [Y/n] Y
Remove test database and access to it? [Y/n] Y
Reload privilege tables now? [Y/n] Y
Thanks for using MariaDB!
root@zab-db:~#

Create the Zabbix Database tables

Now that the database installation is cleaned up and secured, we ca n execute a couple of command lines to create the initial required database and give the zabbix user access to it from the zabbix server:

mysql -uroot -p'ZabPass' -e "create database zabbix character set utf8 collate utf8_bin;"
mysql -uroot -p'ZabPass' -e "grant all privileges on zabbix.* to zabbix@zabbix identified by 'ZabPass';"

Once the (empty) database is built, we need to create the tables and schema. The file to do this is provided. We just need to uncompress it and cat it over to the zab-db server:

root@zabbix:~# zcat /usr/share/doc/zabbix-server-mysql/create.sql.gz | mysql -uzabbix -p'ZabPass' zabbix -h zab-db

This took just over 3 minutes on my installation. Once it’s done, we can turn our focus back to the zabbix server. We need to configure the connection between the two. Edit the config file:

vi /etc/zabbix/zabbix_server.conf

I’m changing two things: the name of the database server and the password to be used to access it.

DBHost=zab-db
DBPassword=ZabPass

Finally, set the mysql process to listen for incoming connections. This is accomplished by editing the main mysql configuration file:

root@zab-db:~# vi /etc/mysql/my.cnf

Add a single section called [mysql] and to it add the whole network as the bind address. You can narrow this range, if it makes you feel more secure.

[mysqld]
bind-address = 0.0.0.0
#skip-networking

Start Zabbix and its Agent

Let’s start this thing up in place. We’ll move the agent off to the proxy server in a bit, once we’re happy that things are working as advertized:

systemctl restart zabbix-server zabbix-agent
systemctl enable zabbix-server zabbix-agent

Configure and Start Apache

The webserver is a snap to config and start. Edit:

vi /etc/zabbix/apache.conf

and edit your timezone. Grep for “timezone” and change it to your local. You’ll find it twice in the first 30 or so lines. Don’t forget to uncomment those lines as well! Once you’ve saved the config, enable the httpd service and start it!

systemctl enable apache2
systemctl restart apache2

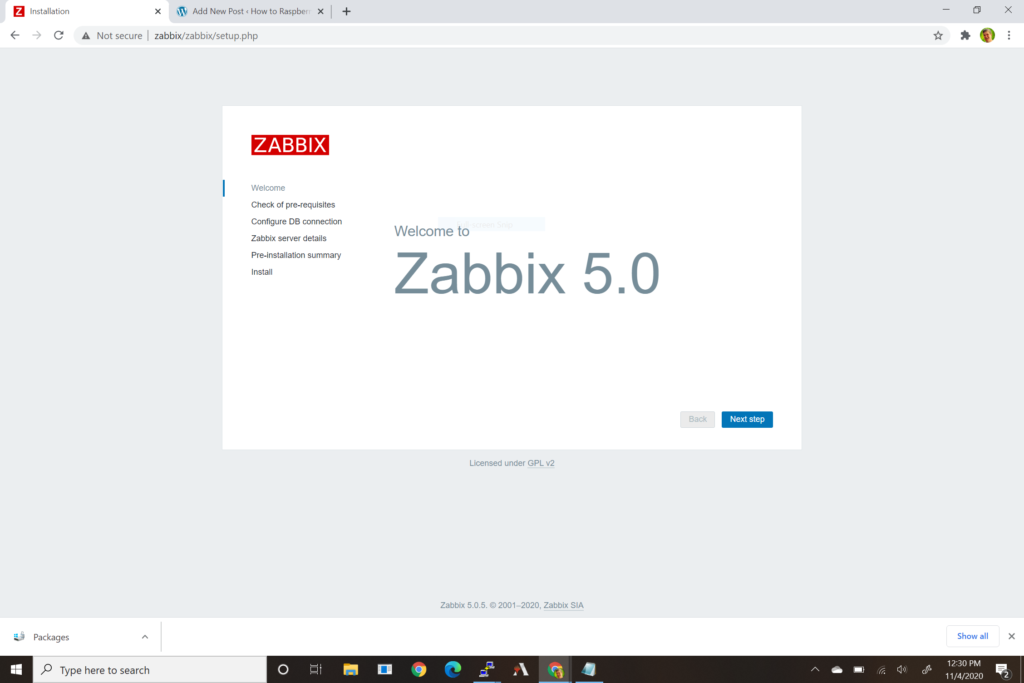

Finally, head over to your new Zabbix server with your browser. (Happy we’re finally off the command line?) The address is http://zabbix/zabbix. If your DNS isn’t set up, use IP address of the server instead of the first “zabbix” in this URL.

Now, follow the guide. Click “Next”. Scroll down through the Pre-requisites. All green! Next. Configure the database connection. I had to uncheck the secure connection checkbox. You know the rest of the answers:

We can take the defaults on the zabbix server connection, so just hit Next. Next again on the summary page and you should get the welcome page! The default account is “Admin” with the password “zabbix”.

We did it! We’ve got a running Zabbix Monitoring Server! I’ll leave you to it. The first thing I’m turning on is autodiscovery so it can start figuring out what’s on my network that’s worth monitoring. In the left-hand menu, click Configuration, and then open Autodiscovery. Check the box next to your local network and then “Enable”. Answer Yes and you’ve enabled hourly scanning for new hosts, running the agent, which you can download from here:

https://www.zabbix.com/documentation/current/manual/installation/install_from_packages/debian_ubuntu

We’ll look at setting up the proxy server and how to handle the discovered devices next time. Leave me a comment if you get stuck…
