How to Install Nagios on a Raspberry Pi

Nagios is a network monitoring system. It’s very useful for monitoring different types of equipment on your network, especially if different people need to be notified when certain things on the network fail. For example, if a router’s CPU goes way up for longer than you think is good, Nagios can send an email to the Network Team. Windows Server with a hard drive more than 90% full? eMail the Windows team! In either case, don’t bug the LINUX guys.

Yeah, yeah, at home, you want to get all the alerts. But maybe you only want to hear about the problem if it’s above 90% for more than 20 minutes. Nagios can handle that.

So, let’s get this running on a Raspberry Pi 4 and we can play. First, install the Apache web server and some utilities for compiling software. I’m just going to “sudo su -” and run all these commands right from /root:

apt install -y autoconf build-essential wget unzip apache2 apache2-utils php
apt install -y libgd-dev snmp libnet-snmp-perl gettext libssl-dev wget bc gawk dc libmcrypt-dev

Then, off to the Nagios GitHub Site to grab the latest free version:


Uncompress the distro and run configure to prep the software for compiling. Make all does the compilation. There’s a couple more “make” commands to facilitate the other configuration steps:

cd nagioscore-master/
./configure --with-httpd-conf=/etc/apache2/sites-enabled
make all
make install-groups-users
usermod -a -G nagios www-data
make install
make install-daemoninit
make install-config
make install-webconf

That’s it for now in configuring the Nagios stuff. Let’s take care of getting apache set up to run dynamic web content.

a2enmod rewrite
a2enmod cgi

Next, we’ll configure the main user’s webpassword:

htpasswd -c /usr/local/nagios/etc/htpasswd.users nagiosadmin

OK. Everything is set up. Run the systemctl commands to allow apache and nagios to start at boot time.

systemctl enable apache2
systemctl start apache2
systemctl enable nagios
systemctl start  nagios

OH! And, hey, while we’re sitting at the command prompt, still logged in as root, let’s go ahead and install the Nagios plug-ins. Plug-ins are the programs that Nagios uses to do its testing of your services. There’s a base set that we’ll install now. There are lots out in the community that we can gather for more specialized probing in the future.

tar xvf nagios-plugins-2.3.3.tar.gz
cd nagios-plugins-2.3.3/
make install
systemctl restart nagios

The moment of truth! Use your browser to go to http://nagios/nagios/ or whatever your hostname is. My dns is not being helpful at the moment, so I’ll use the IP address instead of the hostname in the URL:

Yay! It runs! … or does it? WELL, apache is running and it’s finding static content, but that big red X in the middle of the screen is bothersome. Clicking on Hosts in the left menu gives us some clues:

Hmmm… I thought we built the config during installation with one of those make commands… OK. Troubleshooting step #1. Run “nagios -v” against the main config file. Here’s a screenful of that:

root@nagios:/usr/local/nagios/etc# /usr/local/nagios/bin/nagios -v nagios.cfg
 Nagios Core 4.4.6
 Copyright (c) 2009-present Nagios Core Development Team and Community Contributors
 Copyright (c) 1999-2009 Ethan Galstad
 Last Modified: 2020-04-28
 License: GPL
 Reading configuration data…
    Read main config file okay…
    Read object config files okay…
 Running pre-flight check on configuration data…
 Checking objects…
         Checked 8 services.
         Checked 1 hosts.
         Checked 1 host groups.
         Checked 0 service groups.
         Checked 1 contacts.
         Checked 1 contact groups.
         Checked 24 commands.
         Checked 5 time periods.
         Checked 0 host escalations.
         Checked 0 service escalations.
 Checking for circular paths…
         Checked 1 hosts
         Checked 0 service dependencies
         Checked 0 host dependencies
         Checked 5 timeperiods
 Checking global event handlers…
 Checking obsessive compulsive processor commands…
 Checking misc settings…
 Total Warnings: 0
 Total Errors:   0
 Things look okay - No serious problems were detected during the pre-flight check

Ugh. Something else is wrong!! But, what? Let’s check the log:

root@nagios:/usr/local/nagios/var# cat nagios.log
 [1621970203] Nagios 4.4.6 starting… (PID=15769)
 [1621970203] Local time is Tue May 25 15:16:43 EDT 2021
 [1621970203] LOG VERSION: 2.0
 [1621970203] qh: Failed to init socket '/usr/local/nagios/var/rw/nagios.qh'. bind() failed: No such file or directory
 [1621970203] Error: Failed to initialize query handler. Aborting

Weird. So, I created the rw directory, chowned it to nagios:nagios, rebooted and browsed to my nagios server and I get:  Daemon running with PID 571. Yay! NOW, it’s really running! Thank Goodness for logs!

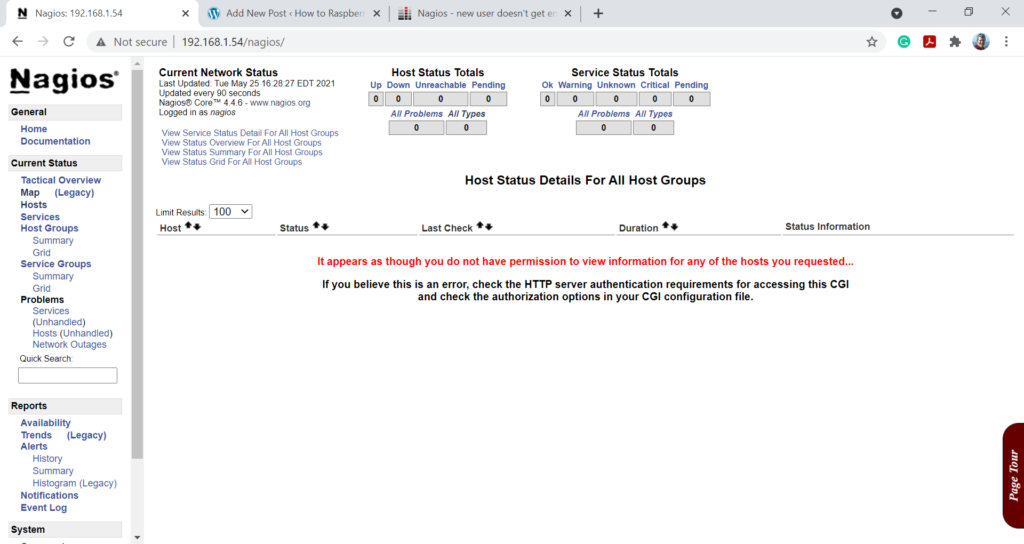

Alright! Let’s click Hosts again and we get:

Hmmm. No joy, yet. Let’s paste that into First hit looks like this:

Oh, yeah. I might have changed the default user name from nagiosadmin to just nagios. So, following the above instructions, I’ll use sed to change all the lines from “nagiosadmin” to “nagiosadmin,nagios”, restart and try again!

YAY YAY YAY! NOW it’s all working! Now we have to configure all of our hosts! Now the real fun begins! Next post, how to configure Nagios!
